#include <ui_piano.h>

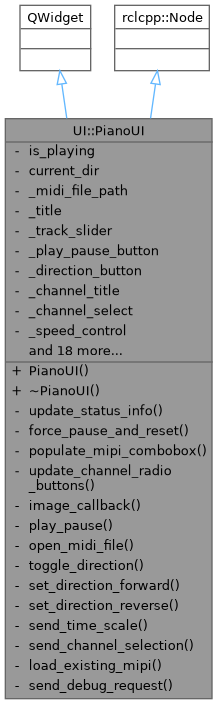

Inheritance diagram for UI::PianoUI:

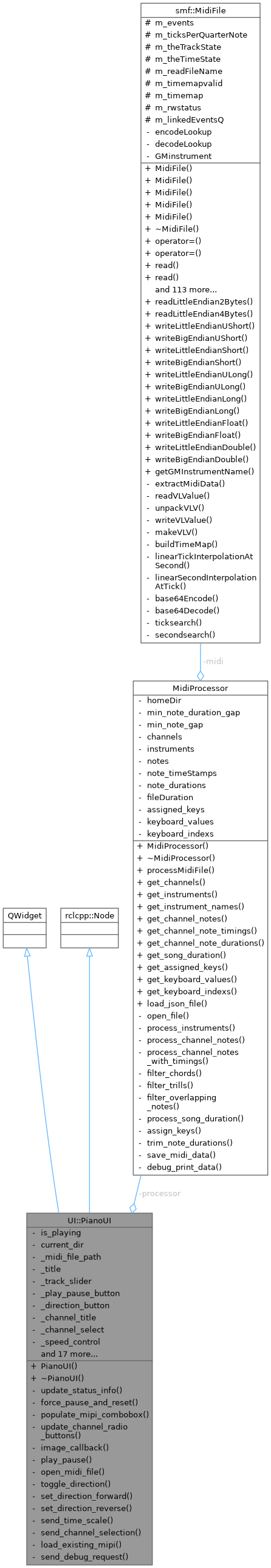

Collaboration diagram for UI::PianoUI:

Public Member Functions
	PianoUI ()
	Hybrid Qt-ROS2 Class for managing the User Interface of the MIDI-to-UR3 system.

	~PianoUI ()
	Standard Destructor for PianoUI Class.

Private Slots
void	play_pause ()
	Toggles the playback state and notifies the /MIPI/play_pause service.

void	open_midi_file ()
	UI Slot for opening a file dialog to process a raw .mid file.

void	toggle_direction ()
	Toggles between Forward and Reverse playback logic.

void	set_direction_forward ()
	Explicitly sets playback direction to Forward via the /MIPI/direction service.

void	set_direction_reverse ()
	Explicitly sets playback direction to Reverse via the /MIPI/direction service.

void	send_time_scale ()
	Transmits the current speed slider value as a time scale factor (0.01-1.0) to the robot.

void	send_channel_selection (int index)
	Transmits the selected MIDI channel to the robot controller.

void	load_existing_mipi (int index)
	UI Slot for loading a file selected from the dropdown menu.

void	send_debug_request ()
	Sends a trigger request to the debug service for development testing.

Private Member Functions
void	update_status_info ()
	Refreshes all status labels in the UI with the latest system state information.

void	force_pause_and_reset ()
	Immediate helper method to halt UI playback tracking and reset visual sliders.

void	populate_mipi_combobox ()
	Scans the ~/mipi_files directory to refresh the dropdown list.

void	update_channel_radio_buttons ()
	Rebuilds the radio button group based on the currently loaded MIDI processor data.

void	image_callback (const sensor_msgs::msg::Image::SharedPtr msg)
	ROS 2 Subscriber callback for camera feed.

Private Attributes
bool	is_playing = false

PlaybackDirection	current_dir = PlaybackDirection::Forward

QString	_midi_file_path

QLabel *	_title

QSlider *	_track_slider

QPushButton *	_play_pause_button

QPushButton *	_direction_button

QLabel *	_channel_title

QRadioButton *	_channel_select

QSlider *	_speed_control

QLabel *	_new_file_label

QPushButton *	_new_file_button

QLabel *	_old_file_label

QComboBox *	_old_file_button

QLabel *	_status_val

QLabel *	_speed_val

QLabel *	_time_val

QVBoxLayout *	_channel_layout

QButtonGroup *	_channel_group

rclcpp::Client< jamc::srv::Func >::SharedPtr	playback_client

rclcpp::Client< jamc::srv::Func >::SharedPtr	direction_client

rclcpp::Client< jamc::srv::TimeScale >::SharedPtr	time_scale_client

rclcpp::Client< jamc::srv::Load >::SharedPtr	channel_client

rclcpp::Client< jamc::srv::Func >::SharedPtr	debug_client

MidiProcessor	processor

QLabel *	_camera_view

rclcpp::Subscription< sensor_msgs::msg::Image >::SharedPtr	_camera_sub

QPushButton *	_debug_button

Constructor & Destructor Documentation

◆ PianoUI()

UI::PianoUI::PianoUI ( )

Hybrid Qt-ROS2 Class for managing the User Interface of the MIDI-to-UR3 system.

This class inherits from QWidget and rclcpp::Node. It contains the following ROS2 I/O:
Service Clients
/MIPI/play_pause (jamc/srv/Func): Triggers a play/pause state change on the robot.
/MIPI/direction (jamc/srv/Func): Toggles the playback direction (Forward/Reverse).
/MIPI/time_scale (jamc/srv/TimeScale): Sends a float (0.01 to 1.0) to scale robot velocity.
/MIPI/load (jamc/srv/Load): Sends the filepath and instrument index to the controller.
Subscriptions
/camera/camera/color/image_raw (sensor_msgs/msg/Image): Receives live feed for UI visualization.

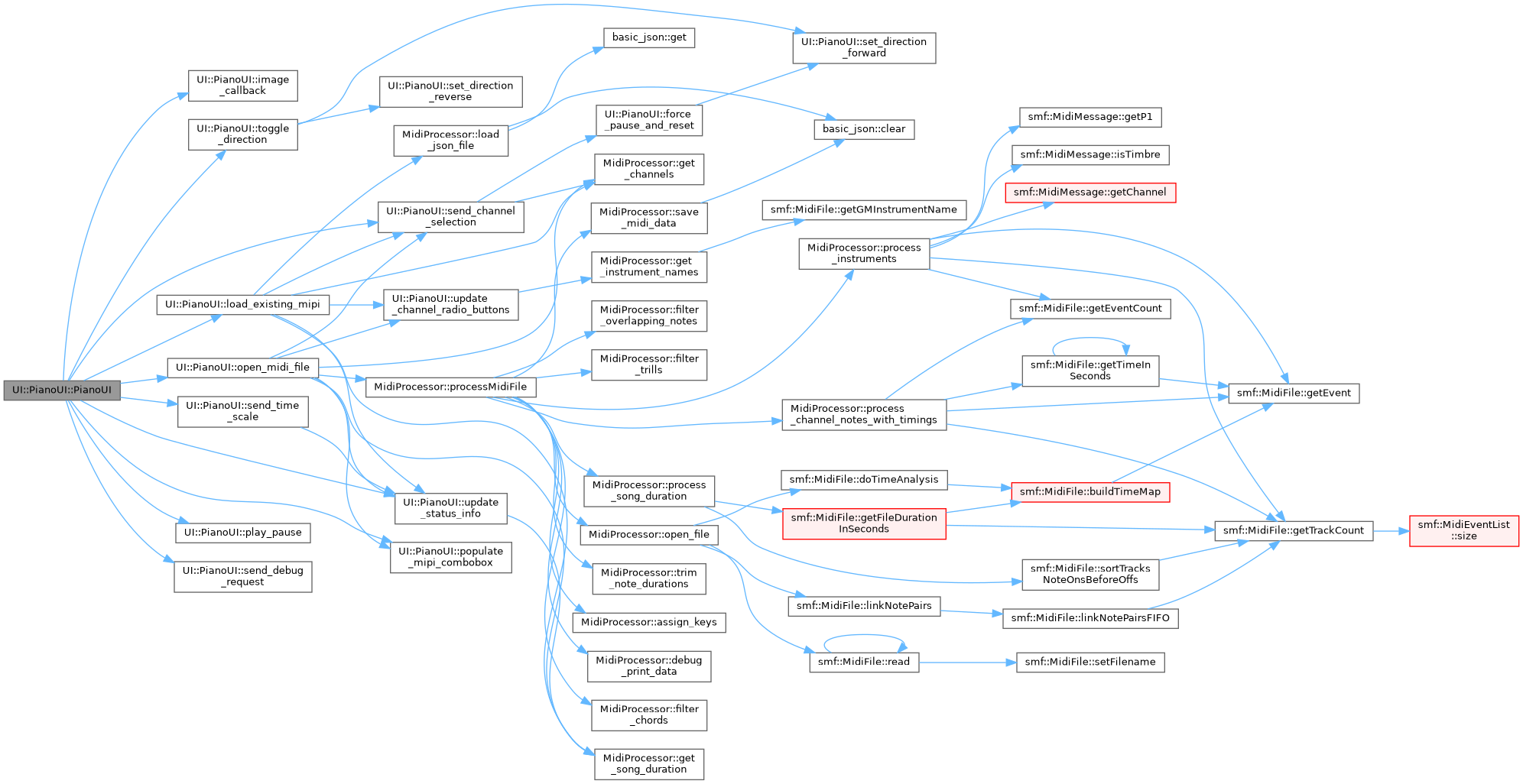

Here is the call graph for this function:

◆ ~PianoUI()

UI::PianoUI::~PianoUI ( )

Standard Destructor for PianoUI Class.

Member Function Documentation

◆ force_pause_and_reset()

void UI::PianoUI::force_pause_and_reset ( )

private

Immediate helper method to halt UI playback tracking and reset visual sliders.

Sends a PAUSE request to the robot and resets the track slider to zero. Always enforces a Forward direction state.

Here is the call graph for this function:

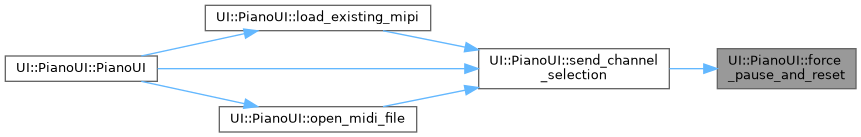

Here is the caller graph for this function:

◆ image_callback()

void UI::PianoUI::image_callback ( const sensor_msgs::msg::Image::SharedPtr msg )

private

ROS 2 Subscriber callback for camera feed.

Callback function for processing incoming ROS 2 image messages.

Parameters

msg	Shared pointer to the image message.

Note: Uses QMetaObject::invokeMethod to ensure thread-safety when updating the UI thread from the ROS executor thread.

Parameters

msg	A shared pointer to the incoming sensor_msgs::msg::Image.

Note: This uses QMetaObject::invokeMethod to ensure the UI update happens on the main thread, avoiding thread collisions with the ROS executor.

Here is the caller graph for this function:

◆ load_existing_mipi

void UI::PianoUI::load_existing_mipi ( int index )

privateslot

UI Slot for loading a file selected from the dropdown menu.

Parameters

index The index of the selected file in the QComboBox.

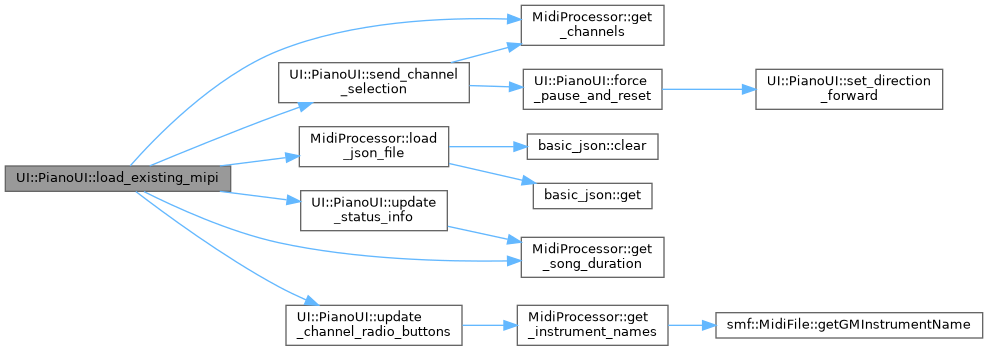

Here is the call graph for this function:

Here is the caller graph for this function:

◆ open_midi_file

void UI::PianoUI::open_midi_file ( )

privateslot

UI Slot for opening a file dialog to process a raw .mid file.

Converts the file to .mipi and automatically selects the first available channel for loading.

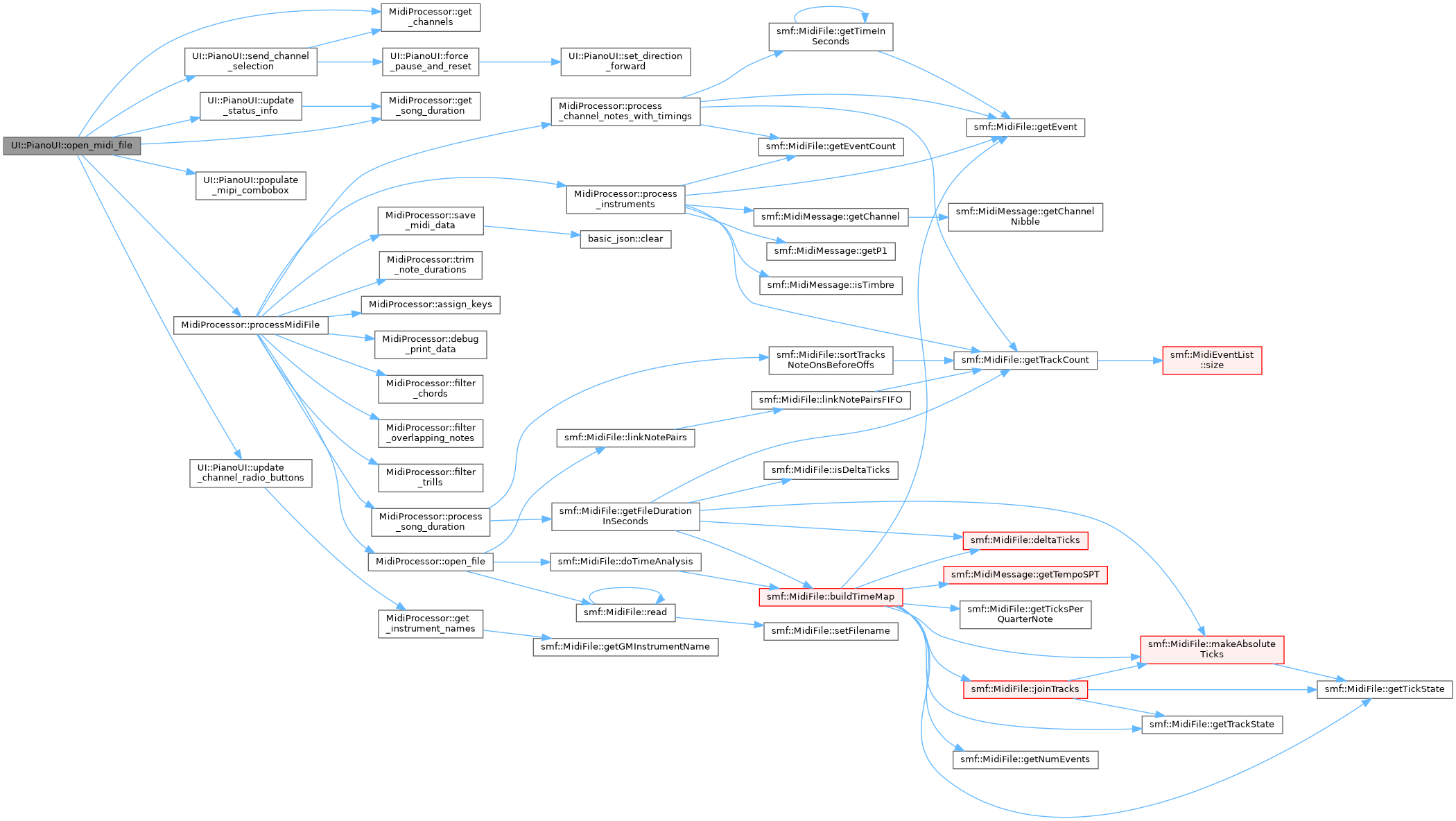

Here is the call graph for this function:

Here is the caller graph for this function:

◆ play_pause

void UI::PianoUI::play_pause ( )

privateslot

Toggles the playback state and notifies the /MIPI/play_pause service.

Here is the caller graph for this function:

◆ populate_mipi_combobox()

void UI::PianoUI::populate_mipi_combobox ( )

private

Scans the ~/mipi_files directory to refresh the dropdown list.

Note: Blocks signals during execution to prevent recursive load triggers.

Here is the caller graph for this function:

◆ send_channel_selection

void UI::PianoUI::send_channel_selection ( int button_id )

privateslot

Transmits the selected MIDI channel to the robot controller.

Sends a load request to the robot controller for a specific instrument channel.

Parameters

button_id The ID of the clicked radio button (mapped to MIDI channel).

Precondition: A .mipi file must be loaded.

Postcondition: Resets playback to ensure the robot starts the new channel from a safe state.

Parameters

button_id The ID of the radio button corresponding to the instrument index.

Clears the current playback state before sending the new file data to the robot.

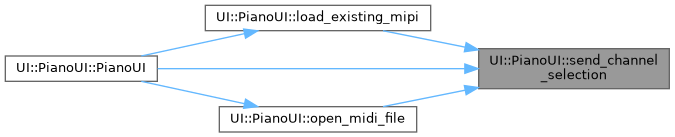

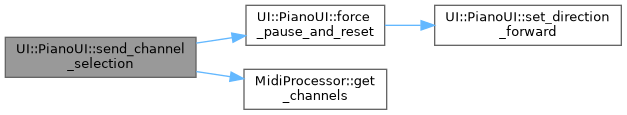

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_debug_request

void UI::PianoUI::send_debug_request ( )

privateslot

Sends a trigger request to the debug service for development testing.

Here is the caller graph for this function:

◆ send_time_scale

void UI::PianoUI::send_time_scale ( )

privateslot

Transmits the current speed slider value as a time scale factor (0.01-1.0) to the robot.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_direction_forward

void UI::PianoUI::set_direction_forward ( )

privateslot

Explicitly sets playback direction to Forward via the /MIPI/direction service.

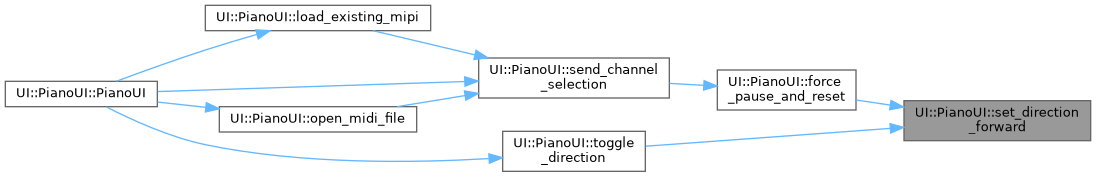

Here is the caller graph for this function:

◆ set_direction_reverse

void UI::PianoUI::set_direction_reverse ( )

privateslot

Explicitly sets playback direction to Reverse via the /MIPI/direction service.

Here is the caller graph for this function:

◆ toggle_direction

void UI::PianoUI::toggle_direction ( )

privateslot

Toggles between Forward and Reverse playback logic.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_channel_radio_buttons()

void UI::PianoUI::update_channel_radio_buttons ( )

private

Rebuilds the radio button group based on the currently loaded MIDI processor data.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ update_status_info()

void UI::PianoUI::update_status_info ( )

private

Refreshes all status labels in the UI with the latest system state information.

Here is the call graph for this function:

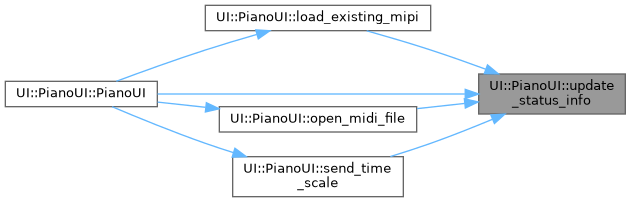

Here is the caller graph for this function:

Member Data Documentation

◆ _camera_sub

rclcpp::Subscription<sensor_msgs::msg::Image>::SharedPtr UI::PianoUI::_camera_sub

private

◆ _camera_view

QLabel* UI::PianoUI::_camera_view

private

◆ _channel_group

QButtonGroup* UI::PianoUI::_channel_group

private

◆ _channel_layout

QVBoxLayout* UI::PianoUI::_channel_layout

private

◆ _channel_select

QRadioButton* UI::PianoUI::_channel_select

private

◆ _channel_title

QLabel* UI::PianoUI::_channel_title

private

◆ _debug_button

QPushButton* UI::PianoUI::_debug_button

private

◆ _direction_button

QPushButton* UI::PianoUI::_direction_button

private

◆ _midi_file_path

QString UI::PianoUI::_midi_file_path

private

◆ _new_file_button

QPushButton* UI::PianoUI::_new_file_button

private

◆ _new_file_label

QLabel* UI::PianoUI::_new_file_label

private

◆ _old_file_button

QComboBox* UI::PianoUI::_old_file_button

private

◆ _old_file_label

QLabel* UI::PianoUI::_old_file_label

private

◆ _play_pause_button

QPushButton* UI::PianoUI::_play_pause_button

private

◆ _speed_control

QSlider* UI::PianoUI::_speed_control

private

◆ _speed_val

QLabel* UI::PianoUI::_speed_val

private

◆ _status_val

QLabel* UI::PianoUI::_status_val

private

◆ _time_val

QLabel* UI::PianoUI::_time_val

private

◆ _title

QLabel* UI::PianoUI::_title

private

◆ _track_slider

QSlider* UI::PianoUI::_track_slider

private

◆ channel_client

rclcpp::Client<jamc::srv::Load>::SharedPtr UI::PianoUI::channel_client

private

◆ current_dir

PlaybackDirection UI::PianoUI::current_dir = PlaybackDirection::Forward

private

◆ debug_client

rclcpp::Client<jamc::srv::Func>::SharedPtr UI::PianoUI::debug_client

private

◆ direction_client

rclcpp::Client<jamc::srv::Func>::SharedPtr UI::PianoUI::direction_client

private

◆ is_playing

bool UI::PianoUI::is_playing = false

private

◆ playback_client

rclcpp::Client<jamc::srv::Func>::SharedPtr UI::PianoUI::playback_client

private

◆ processor

MidiProcessor UI::PianoUI::processor

private

◆ time_scale_client

rclcpp::Client<jamc::srv::TimeScale>::SharedPtr UI::PianoUI::time_scale_client

private

The documentation for this class was generated from the following files:

include/ui/ui_piano.h
src/ui/ui_piano.cpp
